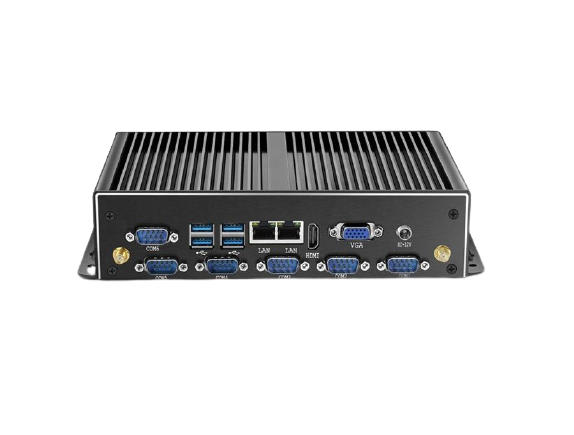

Chipol X26A Intel i7 industrial computer – 6x RS232 + 2x LAN

3144,00

Description

A computer designed for special tasks, metal housing allows you to work at full power using passive cooling.

Industrial mini PC Chipol is the perfect option to run at full speed on Linux and Windows. The design of the device ensures efficient and failure-free use even 24 hours a day. The lack of active cooling elements allows you to enjoy working in silence. The ChiPol microcomputer allows you to work in difficult conditions without generating any additional noise or sound.

ChiPol has all the necessary inputs / outputs, incl. USB 3.0 (and WifFi 2.4 and 5 GHz optional) and dual LAN RJ45.

A proven cooling system was used here, based only on fixed elements, mainly heat sinks. The metal housing permanently protects as well as perfectly dissipates heat. This system uses the phenomenon of metals giving off heat energy to the environment – there are no additional moving elements such as fans. This solution ensures noiseless operation, lower failure rate due to the lack of forced air circulation, while reducing the amount of energy consumed.

The mini PC communicates via a 10/100/1000 wired network.

Optional wireless WiFi 2.4GHz and 5.8GHz 802.11 b / g / n. Two external antennas increase the range and stability of the connection.

The number of available, possible options further extends the possibilities of expansion and use of the device.

The device has eight USB sockets, including four USB 3.0 and four 2.0 and 6 RS232 ports !!!

Two RS232 ports can be reconfigured to RS485.

Another important element is the ability to work in a wide temperature range, from -20 ° C to 75 ° C.

The 12 V power supply allows the use of this model in transport – cars, buses, trucks, etc.,

Item specification

Type: Mini pc
Model Number: i7-4500U
RAM: 2 GB
Hard Drive: 32 GB
Base frequency: 1.8 GHz, maximum 3.0 GHz
Processor model: Intel Core i7-4500U
Usage: Industry, Server, Commerce,
Graphics Card Type: Integrated
Ports: 4 * USB 3.0, 4 * USB 2.0, 6 * RS232, 2 * LAN, VGA, HDMI, speaker, microphone,
Operating system: Windows 7, 8, 10, Linux
Network: 2 x 10/100/1000 (+ Dual Wifi a / b / n optional)
Passive cooling
Weight: 1.35 kg

ADDITIONAL CHARGES FOR CONFIGURATION:

RAM DDR3L 4GB – 110 PLN, 8GB – 170 PLN, 16GB – 350 PLN

SSD mSATA – 64GB – 90 PLN, 120GB – 150 PLN, 240GB – 250 PLN, 480GB – 400 PLN, 1TB – 800 PLN

WiFi – PLN 100
