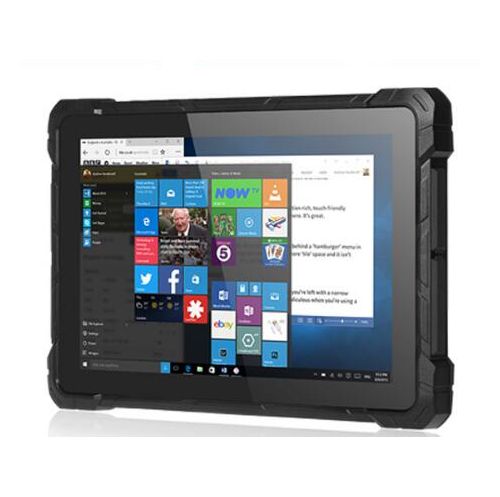

Description
Chipol F7N is an intermediate model of the F7 series. IP67 waterproof, shockproof, dustproof, anti-vibration, crushproof, durable and sturdy, suitable for extreme environments.
Multiple interfaces including RJ45, USB3.0, USB type C, RS232, HDMI, TF card reader, SIM card slot.
It is dual-band Wi-Fi, 2.4G and 5G and Gigabit LAN 1000 Mb / s. It is widely used in warehouse management, outdoor activities, security monitoring, industrial control, etc.
10” FHD IPS display with 10 point multi-touch, sunlight viewable. Low power, DC 12V/3A, with 5000mAh 7.6V battery.
This model has a 2D code scanner and a GSM LTE modem
Tablet Specification:
- Model: Chipol F7N
- Tightness: IP67
- Operating system: Windows 10 64 bit
- Display: 10.1″ IPS
- Resolution: 1280×800
- Brightness: 300 nits
- Touch: G+G multi-point touch
- Processor: Intel Gemini Lake N4000 (Dual-Core) 1.1-2.6GHz
- Graphics: Intel UHD 600
- Memory: 4GB LPDDR4
- HDD: 64GB eMMC
- Battery: Li-ion 5000mAh 7.6V
- Working time up to: 6h
- Speakers: stereo 8Ω/1W*2 waterproof
- TF card reader: up to 128GB
- Cameras: front 2Mpx, rear 5Mpx
- GSM modem: 4G LTE
- WiFi network: 802.11 ac/b/g/n (2.4/5GHz)
- Bluetooth: version 4.2
- LAN network: 1000Mbps RTF8111F
- Barcode reader: 2D
- HDMI output: Micro HDMI 2.0
- I/O: USB 3.0, USB type C, audio/mic,
- RS232: yes (DB9)
- Power supply: DC 12V / 3A
- Device weight: 1.15 kg
- Dimensions: 280 x 184 x 26.5 mm
- Operating temperature: -10 ~ 55 degrees C
- Humidity: 35% – 80%, non-condensing
Contents: tablet, power supply, manual
